   Full Automatic Chemistry Analyzer

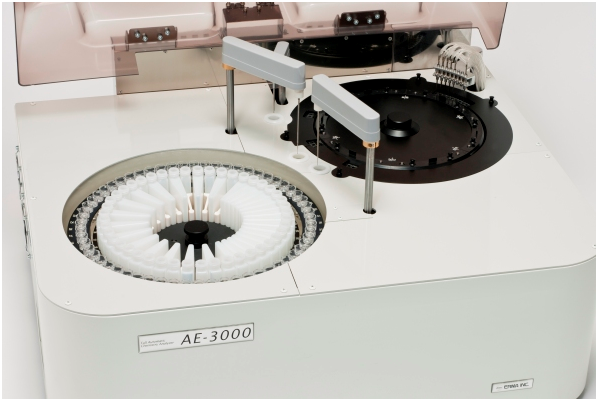

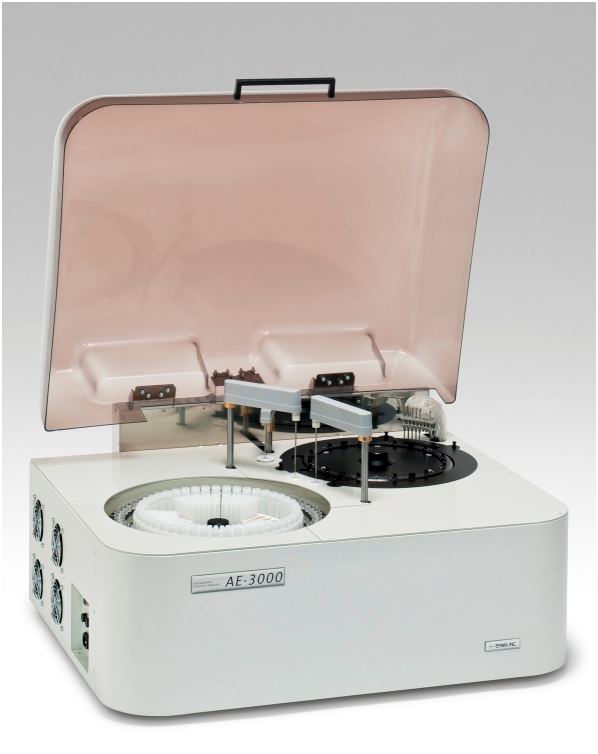

The superior model of ERMA Full Automatic Chemistry Analyzer
with double-arm and powerful processing ability Feature.

ERMA AE-3000 provides numerous functions for a variety of purposes such as the editing function of patient data, the function of curve correction based on multipoint calibration, QC management and so on.
The graphical user interface implemented in the software for ERMA AE-3000 allows the operator to easily find and perform each function.
The pipette unit incorporates the sensor system for detecting a liquid level for assuring safety and monitoring remaining amount of sample and reagent.
The excellent washing function for the cuvettes and probes prevents the problem of carry over.



Specification

Assay Method

End-point method, Kinetic method, Two end-point method, Fixed time method

Throughput

Max. 200 tests / hour

Assay Item

Max. 45 items

Sample Aspiration Volume

1-100ul (1ul each step)

Reagent Aspiration Volume

R1=1-350ul, R2=0-200ul (1ul each step)

Sample Positions

60

Reagent Positions

45

Reaction Time

Approx. 10min.

Reaction Liquid Volume

180-400ul

Filters

Wavelengths (nm): 340, 405, 450, 510, 546, 578, 630, 700

Linearity Range

0-2.5 Abs.

Calibration

Linearity/Non-linearity calibration

Washing System

5 needles

Temperature Control

Cuvette - 37±0.5℃

Dimension

840(W)X740(D)X500(H)mm

Weight

70Kg approx.
